Solar Outdoor Trainer

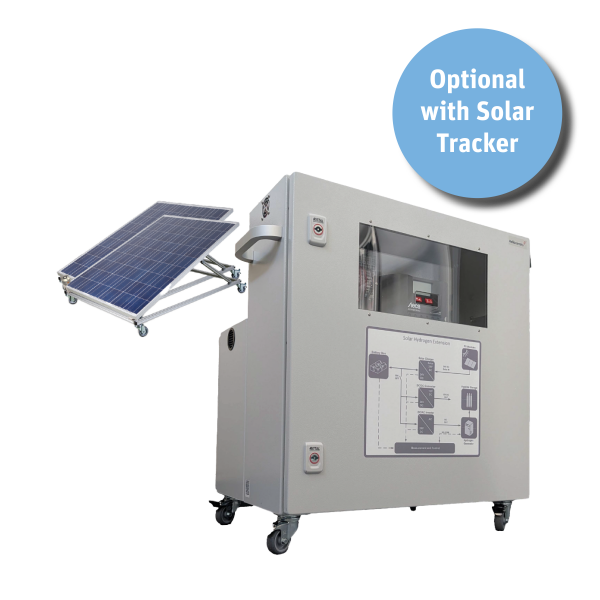

The Solar Outdoor Trainer is an off-grid photovoltaic system with over 800 Wp. With the addition of a hydrogen generator, it is possible to produce hydrogen from clean solar energy. This product extension is called the SHE Solar Hydrogen Extension.
The system enables comprehensive monitoring of solar-powered electricity generation. Power and generation data from the PV modules, the power electronics and the battery are displayed in the supplied software and can be logged for further processing. The energy flows between the individual components are clearly displayed. Mobile solar modules with an adjustable tilt angle and optional sun sensors enable detailed experiments on solar power generation.
Key Features
- Basics of solar photovoltaic power generation
- Functional principle of an off-grid solar system
- Efficiency analysis of solar production
- Focus on solar power and off-grid
Sample experiments
- Optimal alignment of solar module
- Behavior of solar modules
Documentation
The supplementary material facilitates use of the system.
- Detailed operating manual
- Experiment Guide with:
- Graphic display of experiment set-ups
- Worksheets with questions and tasks Solutions
- USB-Stick with printable experiment sheets (PDF files)
Sample experiments
- Optimal alignment of solar module
- Determining the efficiency of the electrolyzer
- Behavior of solar modules
Software
The software is used to visualize data and control the system. Measurements at the system and component level are displayed and can easily be retrieved and exported for further processing. Also, the limit values for the battery regulation can be defined.
Efficiency Analysis
- Overall system output balancing
- System efficiency chain (Sankey diagram)
System overview
- Flow chart view
- Voltage and current display for individual components
Time Curve
- Graphic visualization of the measurements
- Freely configurable measurements
Setup
The Solar Outdoor Trainer is a modular system. Connecting cables and wheels allow easy set-up and take-down.
Solar Modules Unit
- 2 x >400 Wp polycrystalline/monocrystalline solar module
- Adjustable angle of inclination
Optional: PV Sensor Kit
- Temperature sensors
- Irradiation sensors
System Technology Unit
- Suitable for loads up to 700 W
- Ethernet port for PC control and network connection
- Includes power electronics, measuring technology and batteries
- Optimized for the supply of the electrolyzer
Optional: Electrolyzer HG 72 / HG 30
- Upgrade to Solar Hydrogen Extension with a Electrolyer HG 72 or HG 30
- Production capacity of 30 or 72 sl/h
- Suitable for continuous operation
- Interface for PC control
ENERGY LABS. OPC UA Ready.
Heliocentris training systems come with full OPC UA connectivity built in — voltage, current, temperature, gas flow, all exposed as structured data nodes from day one. Connect directly to SCADA software, MATLAB/Simulink, PLCs, Node-RED or any custom application. No extra hardware. No license fees.
- SCADA Systems – Monitor and control a complete energy system in an industrial HMI environment.
- MATLAB / Simulink – Stream live process data for analysis and hardware-in-the-loop testing.
- PLCs, Node-RED & Custom Apps – Integrate via standard OPC UA or any compatible SDK.
Multi-client support and full read/write access to all channels are included as standard — making Heliocentris systems a natural fit wherever real industrial data integration matters.
Available on: Heliocentris Hybrid Energy Lab, New Energy Lab, Solar Hydrogen Trainer, Solar Outdoor Trainer and Fuel Cell Trainer.
