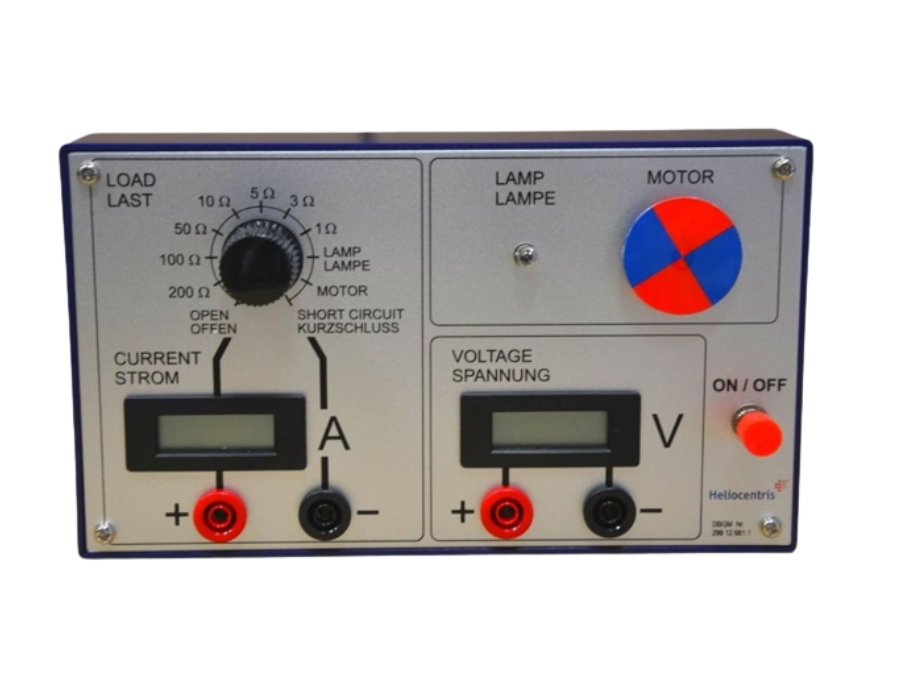

Measurment Box

Dimensions (W x H x D) 190 mm x 110 mm x 60 mm
Operating voltage of motor 0.2 ... 3 V
Current consumption of motor 10 ... 15 mA
Operating voltage of lamp 0.6 ... 1.5 V
Current consumption of lamp 80 mA
Measured resistance (in Ω) 1, 3, 5, 10, 50, 100, 200 Ω , open and short circuit
Ammeter 0 ... 2 A
Voltmeter 0 ... 20 V DC

 K00-0358 individually packed
